ENGINEAI Full-Scale High-Mobility General-Purpose Robot

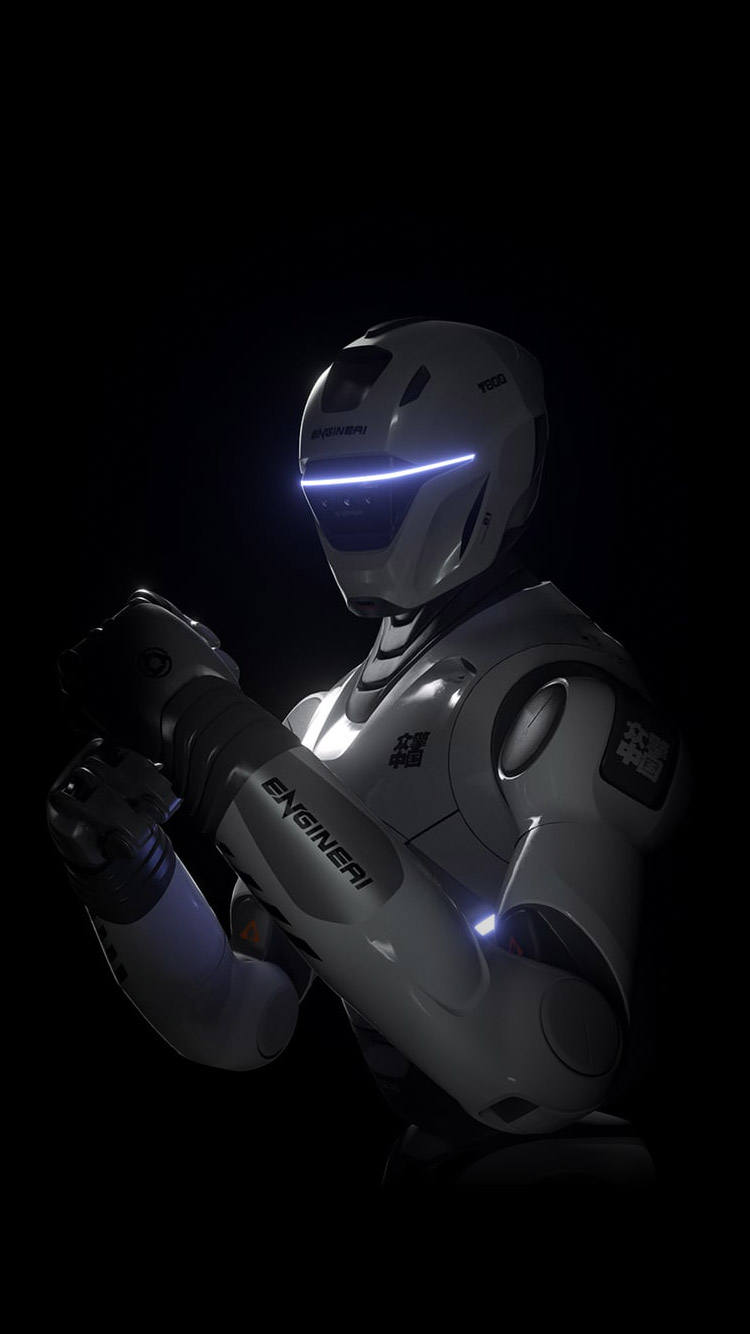

ENGINEAI T800
Hardcore Evolution, Explosive Rebirth.
For Disruption
A general-purpose robot that integrates peak performance, omnidirectional awareness, and long-endurance operation, empowering a wide range of applications.
Play the full video
Technical Highlights

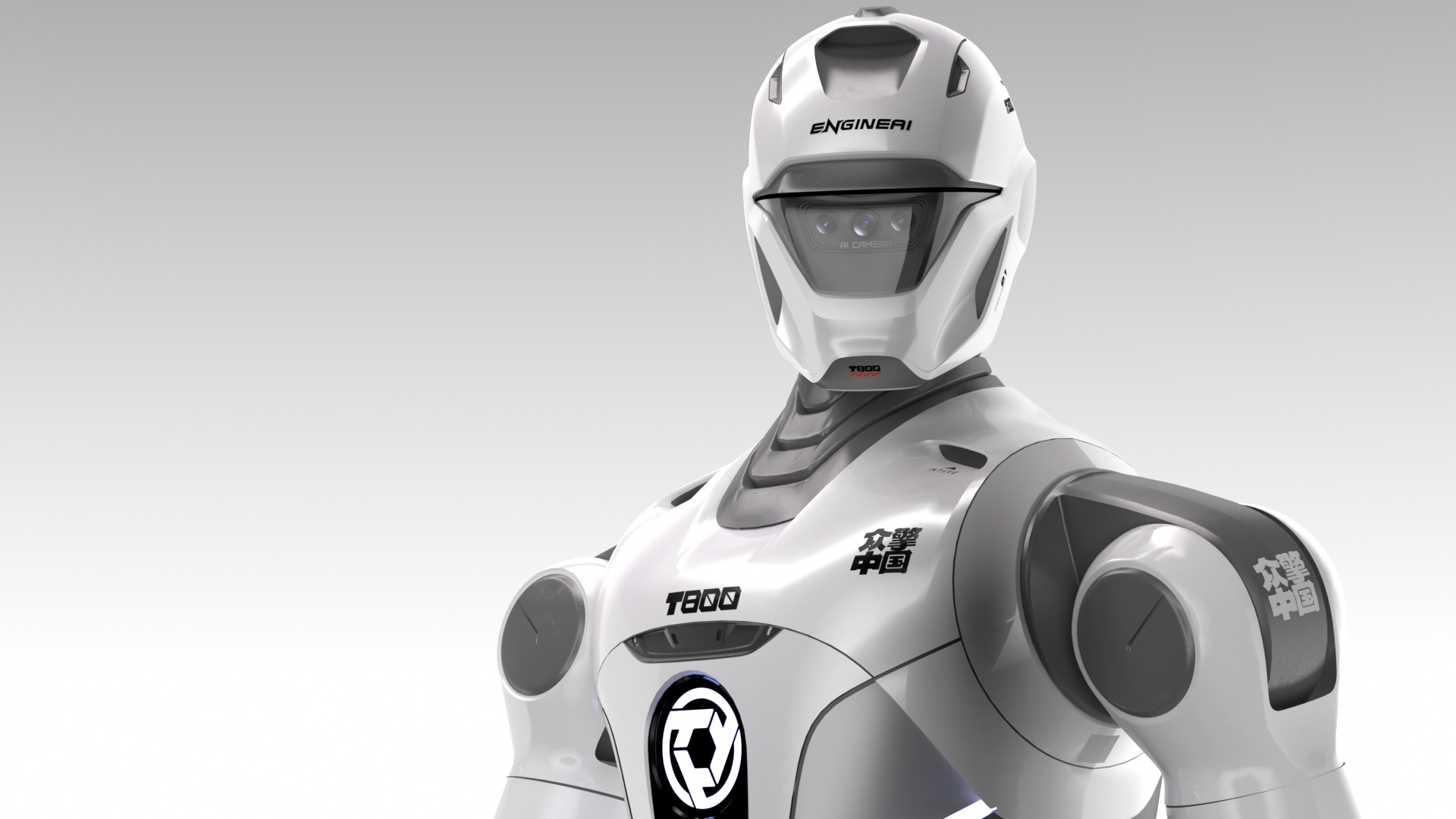

One Size for All Scenarios
173cm in height
Endurance for High-Intensity Work
Full leg joint active cooling enabling 4 hours of continuous operation

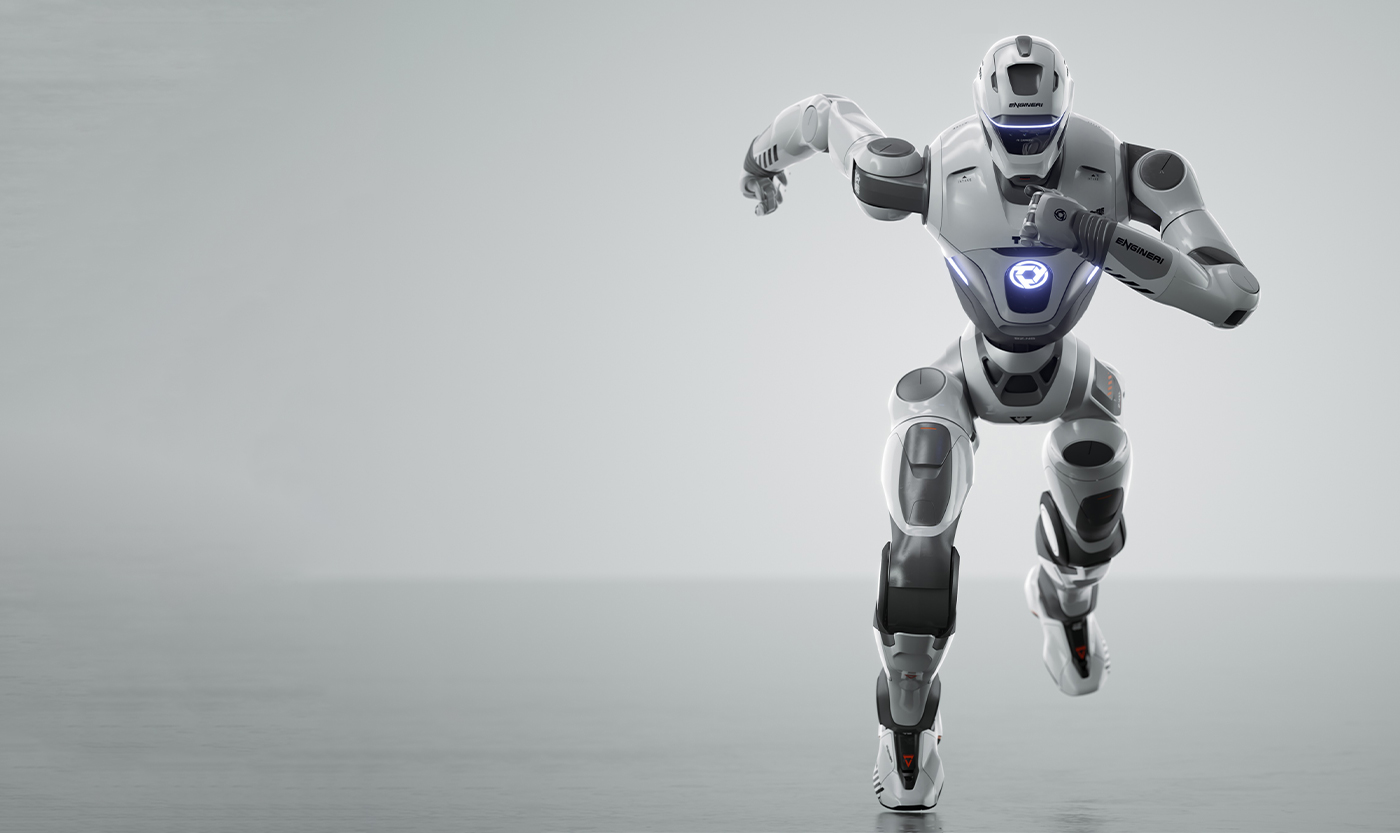

High DOF joint design
29 DOF throughout the body
(excluding the dexterous hand)
Anthropomorphic motion design
Supports seamless transitions
between complex movements
Multi-Modal Perception System
Includes in-house develope
miniaturized joint modules
360° omnidirectional radar
Millisecond-level
environmental
data processing

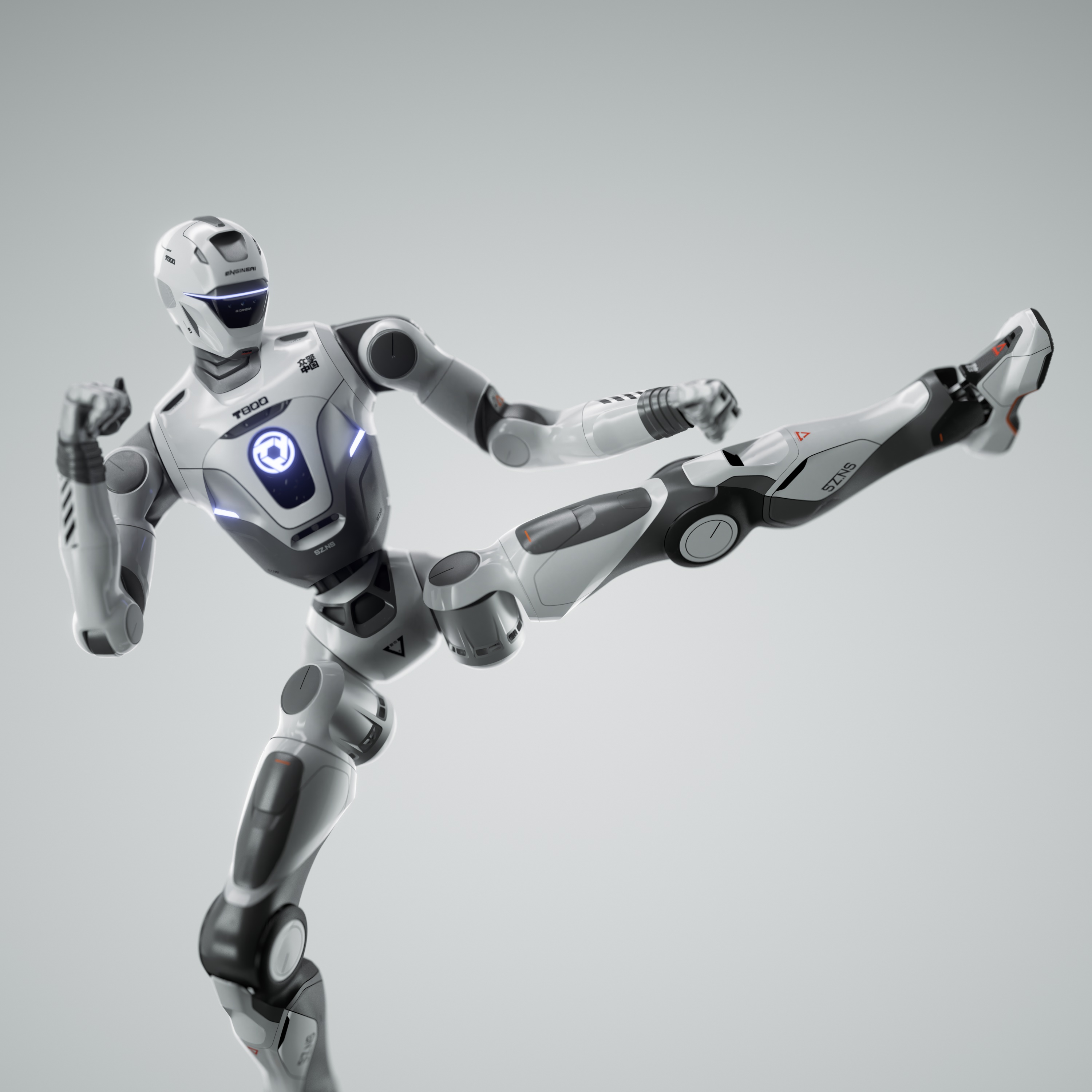

Industry-leading explosive power
Joint torque of up to 450 N·m

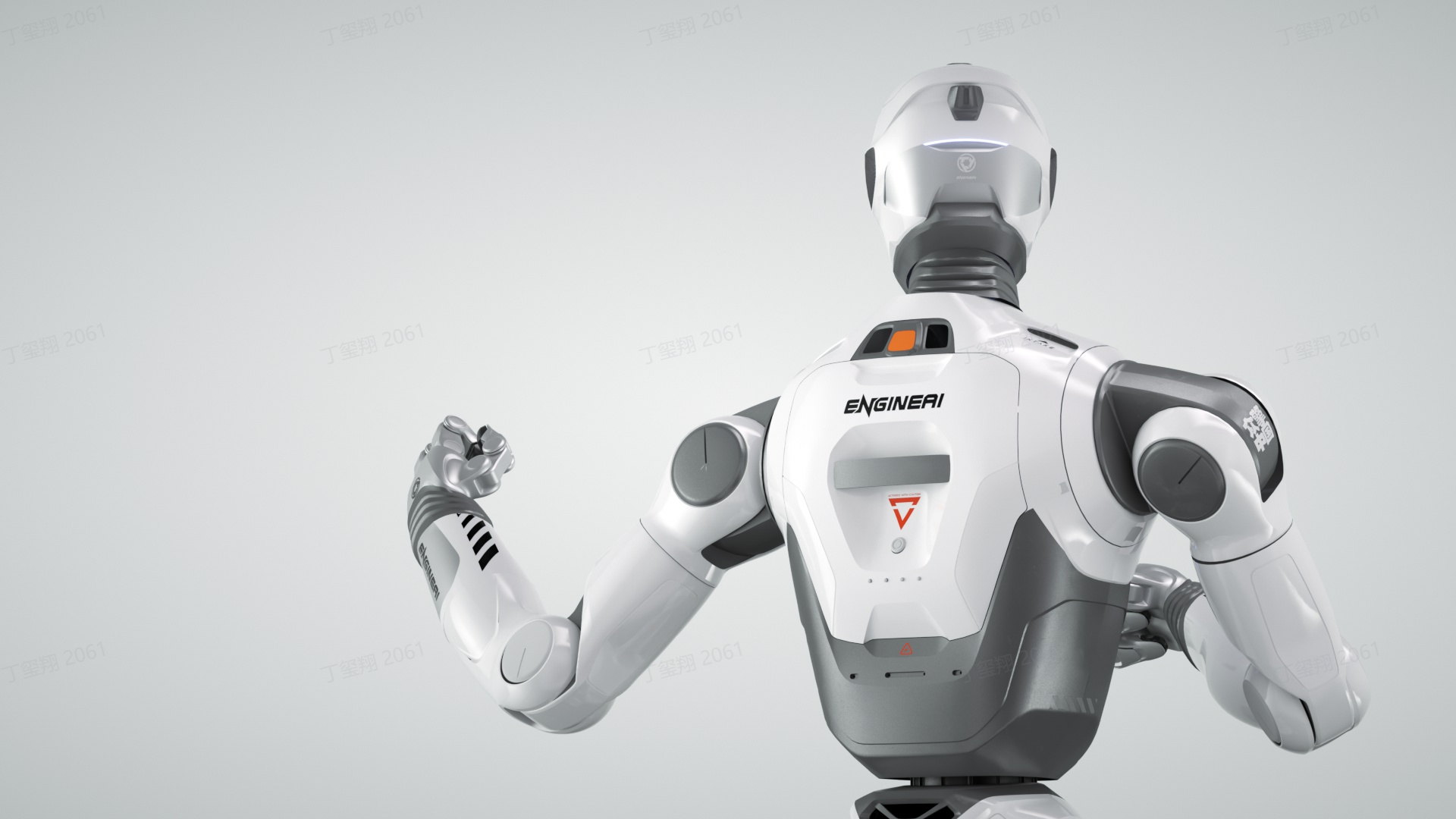

Ultimate Power Aesthetics
Power-Technology Integration
Robust Shell
Motion Demo
Combination punch

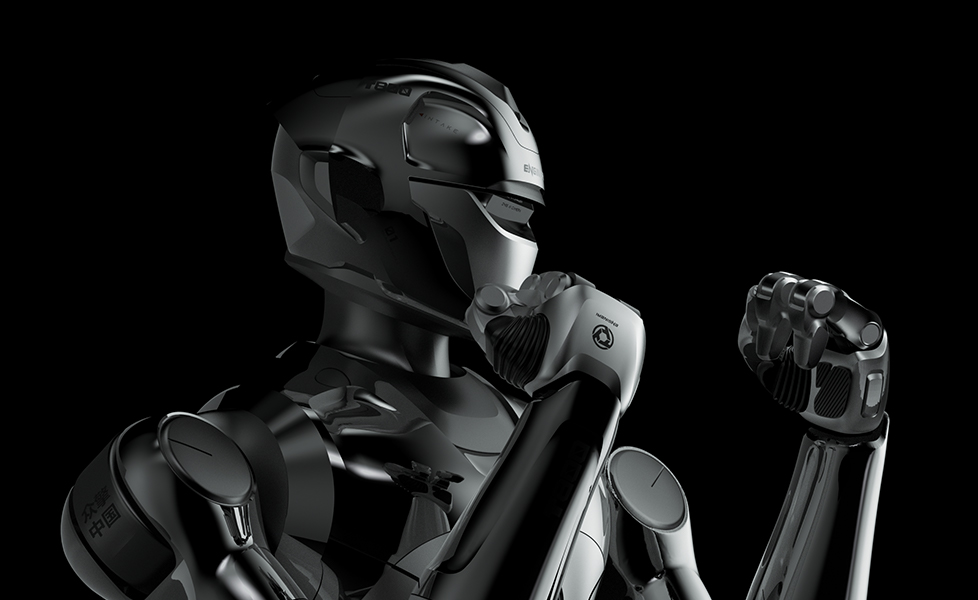

Flying Kick

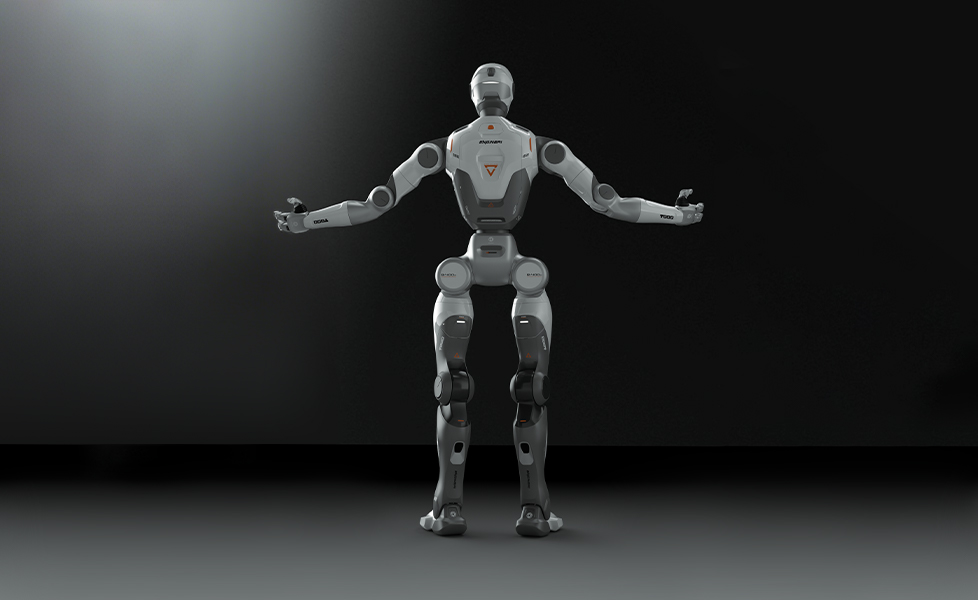

Five-Hit Kick
Taunt
Roundhouse kick
Punch-Kick Combos
Capoeira
Five consecutive kicks

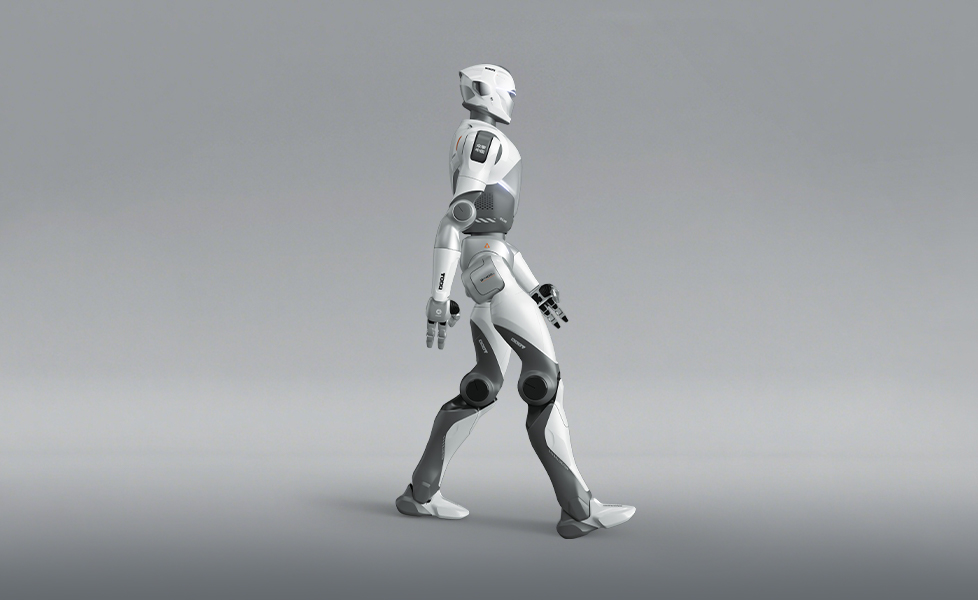

Walking

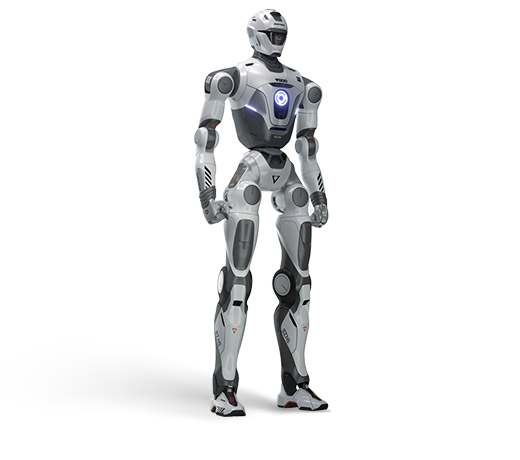

Streamlined Aesthetics and High-Strength Alloy Chassis
The streamlined design features sharp, clean lines.

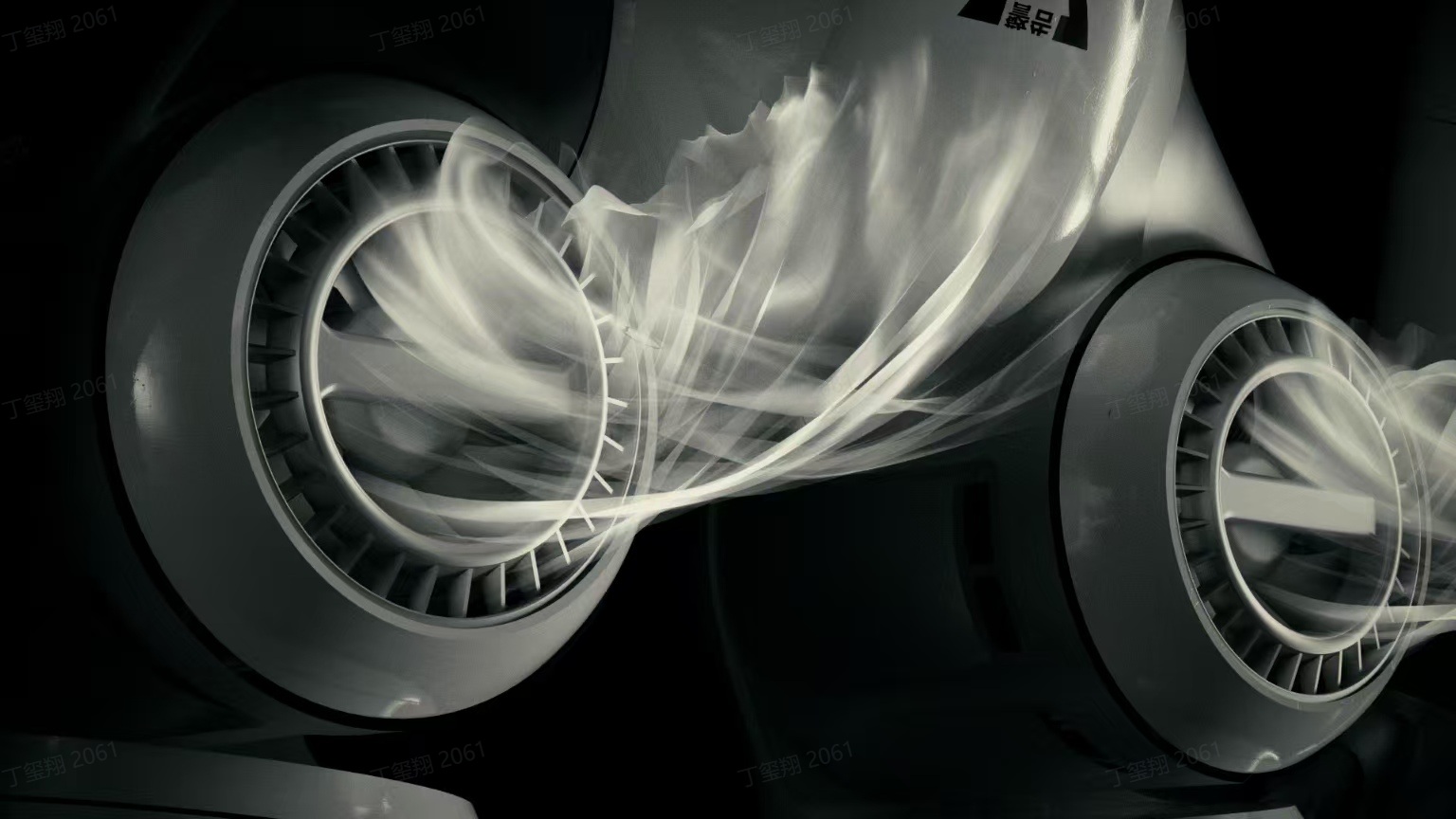

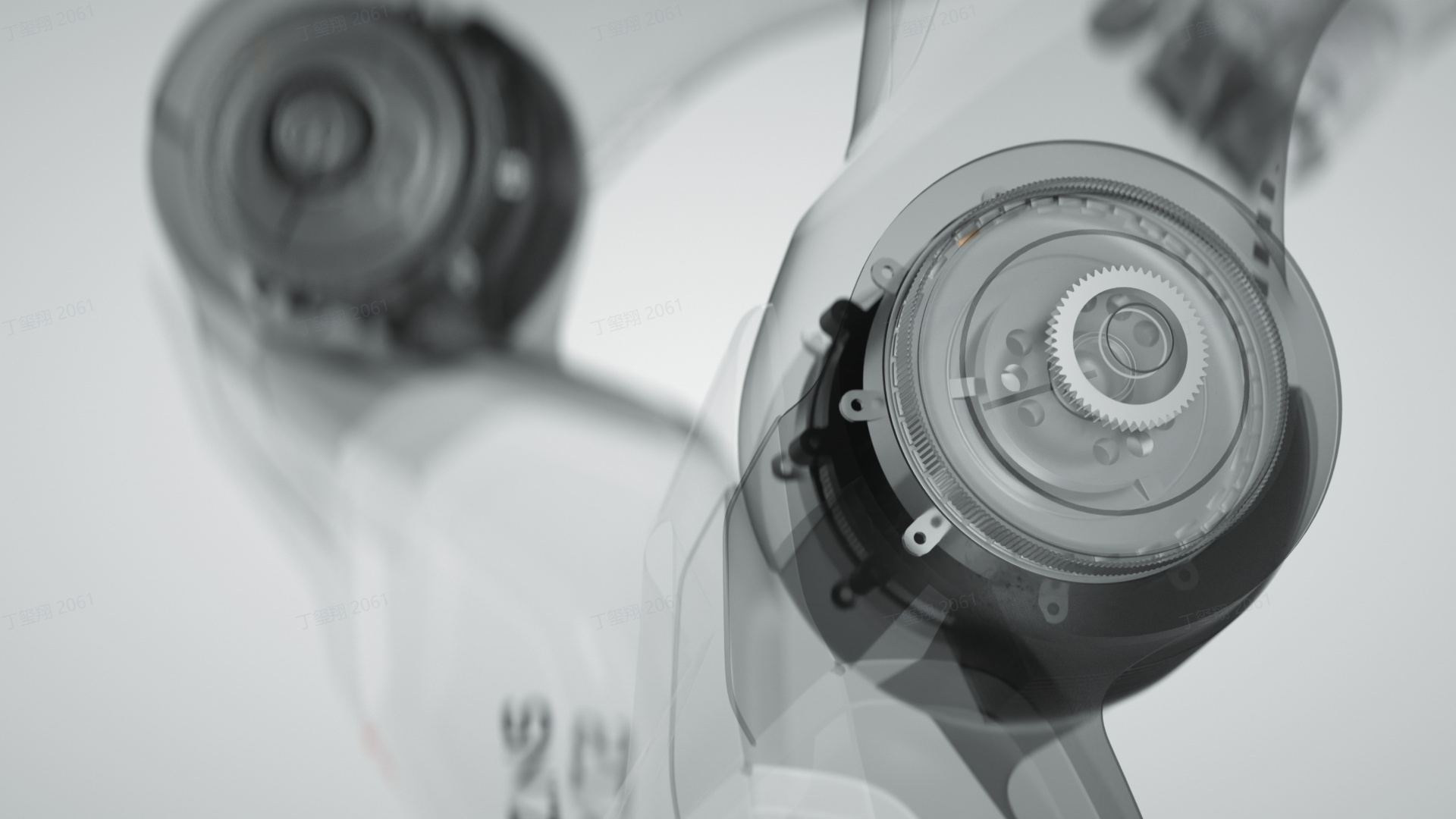

Sustained High-Performance Cooling System
Allowing the robot to thrive under heavy loads and high temperatures.

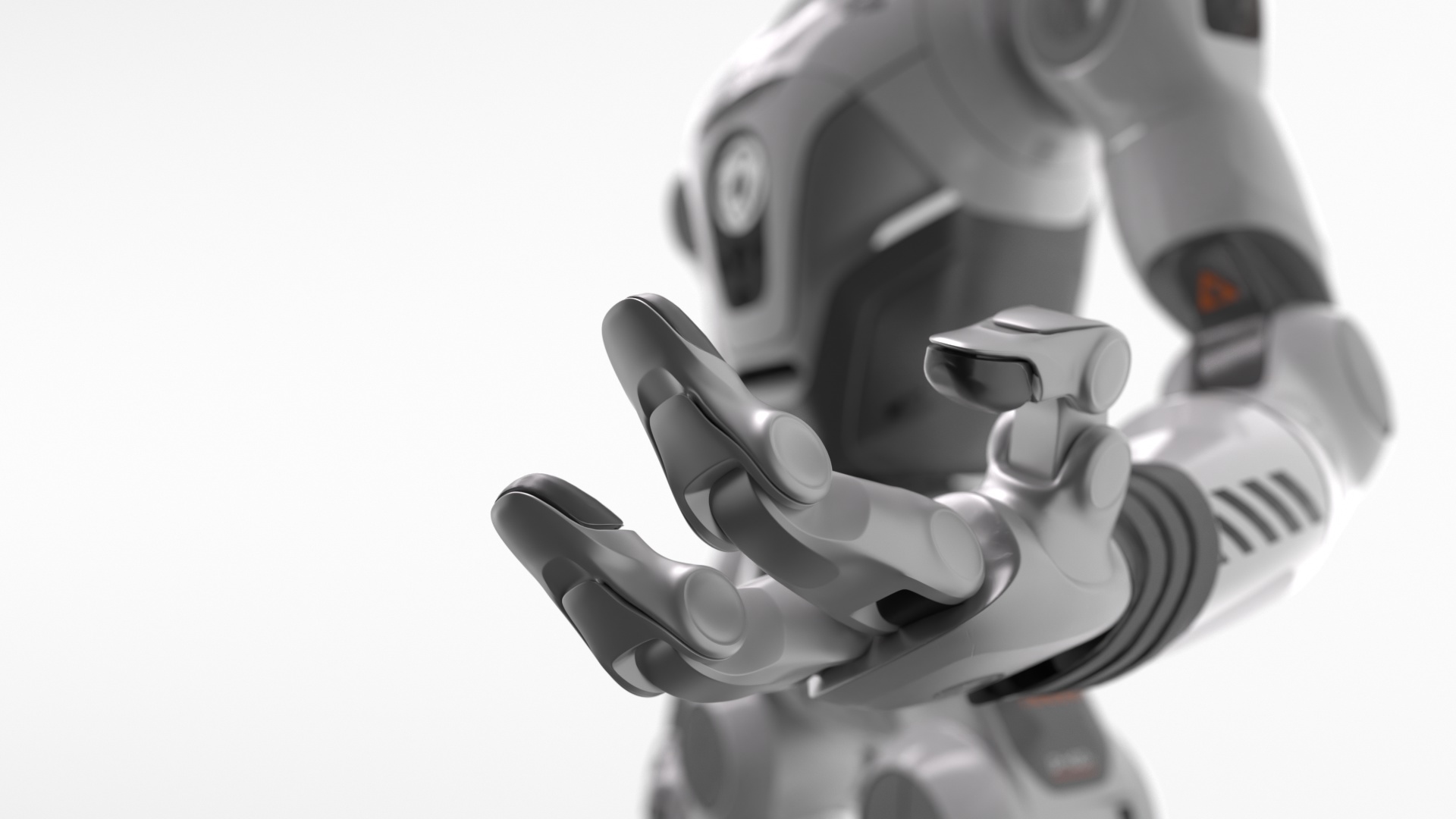

Multi-modal Dexterous Hand
It enables fine grasping and flexible manipulation, adapting to diverse object handling requirements.
Omnidirectional Sensor Fusion System
millisecond-level data processing for precise obstacle avoidance.

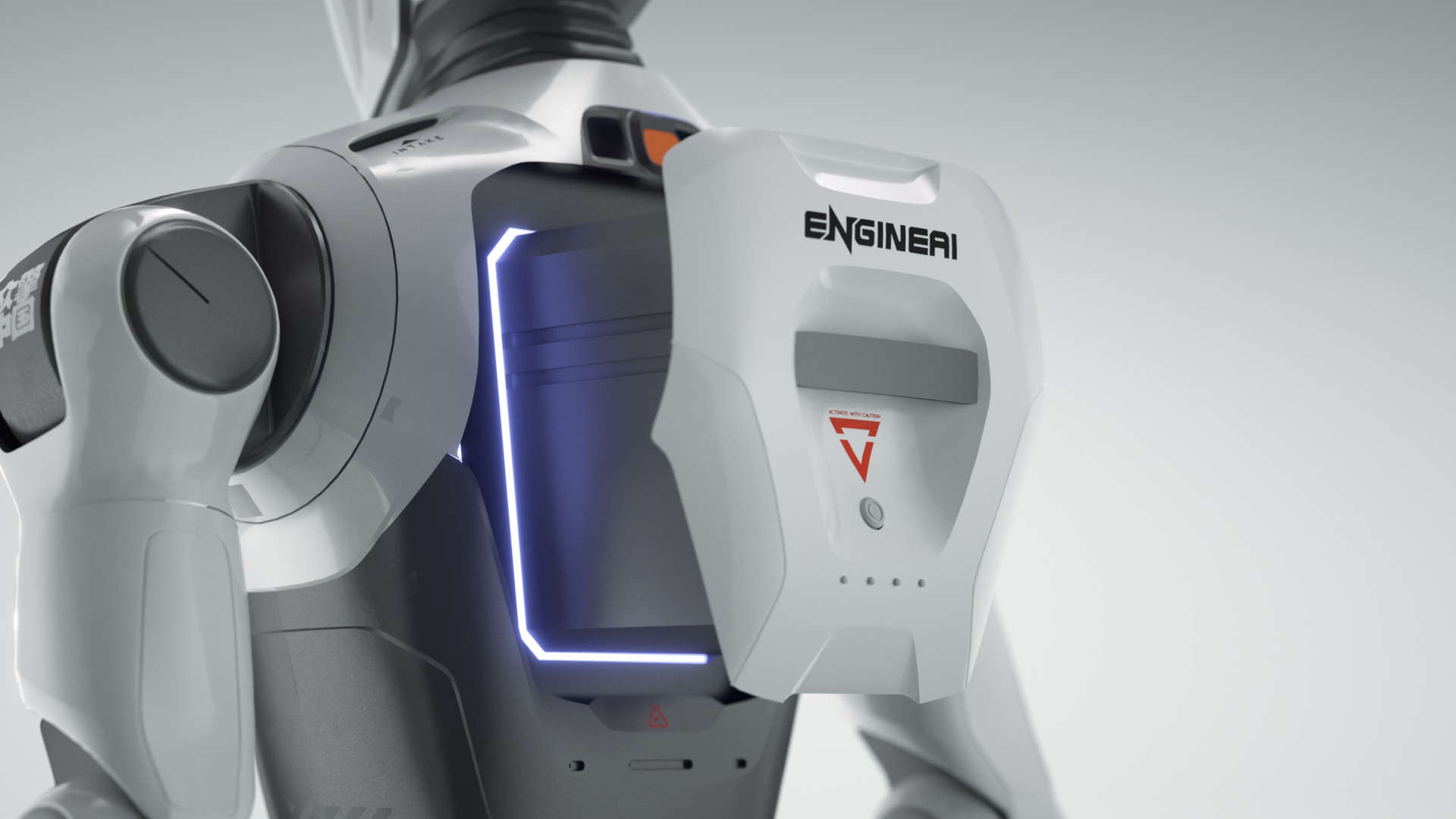

Modular Solid-State Battery Architecture
Delivers up to 4 hours of powerful endurance, easily handling various high-intensity, long-duration operation scenarios.
Coordinated movement of high-degree-of-freedom joints.
High-degrees-of-freedom (DOF) joints and anthropomorphic motion design enable seamless transitions between complex actions.
Application Scenarios

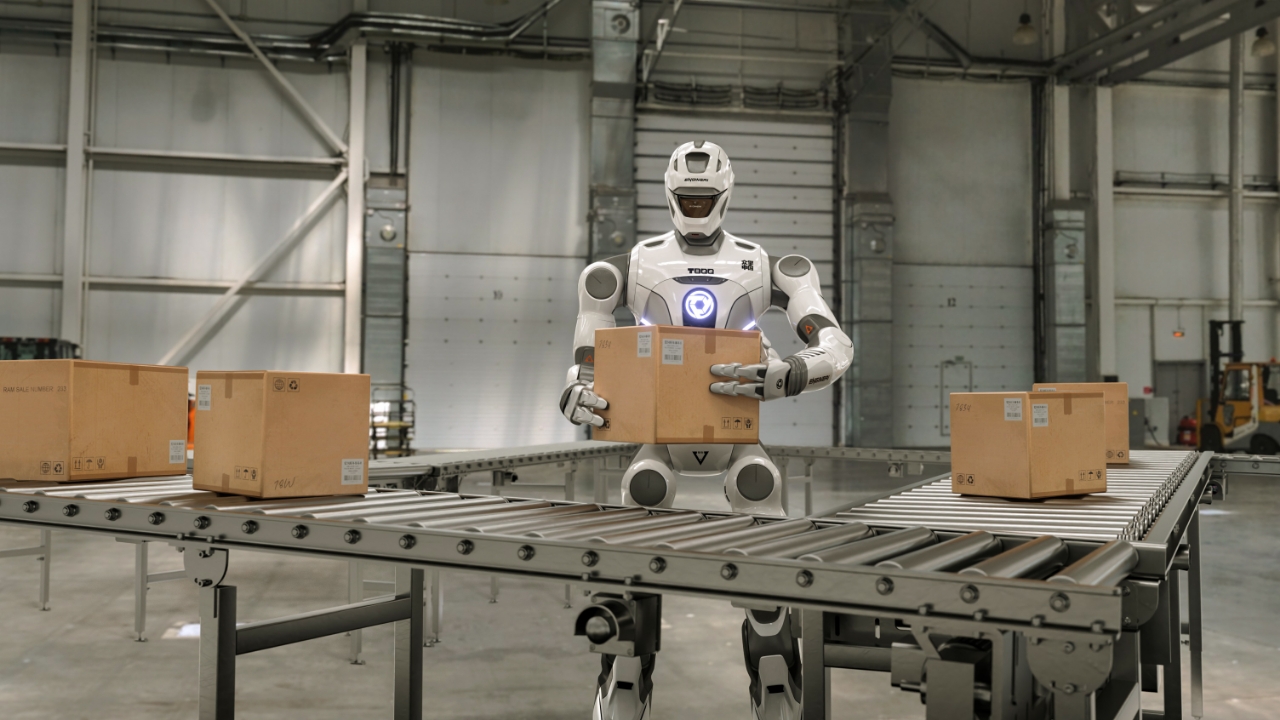

Logistics Warehouse

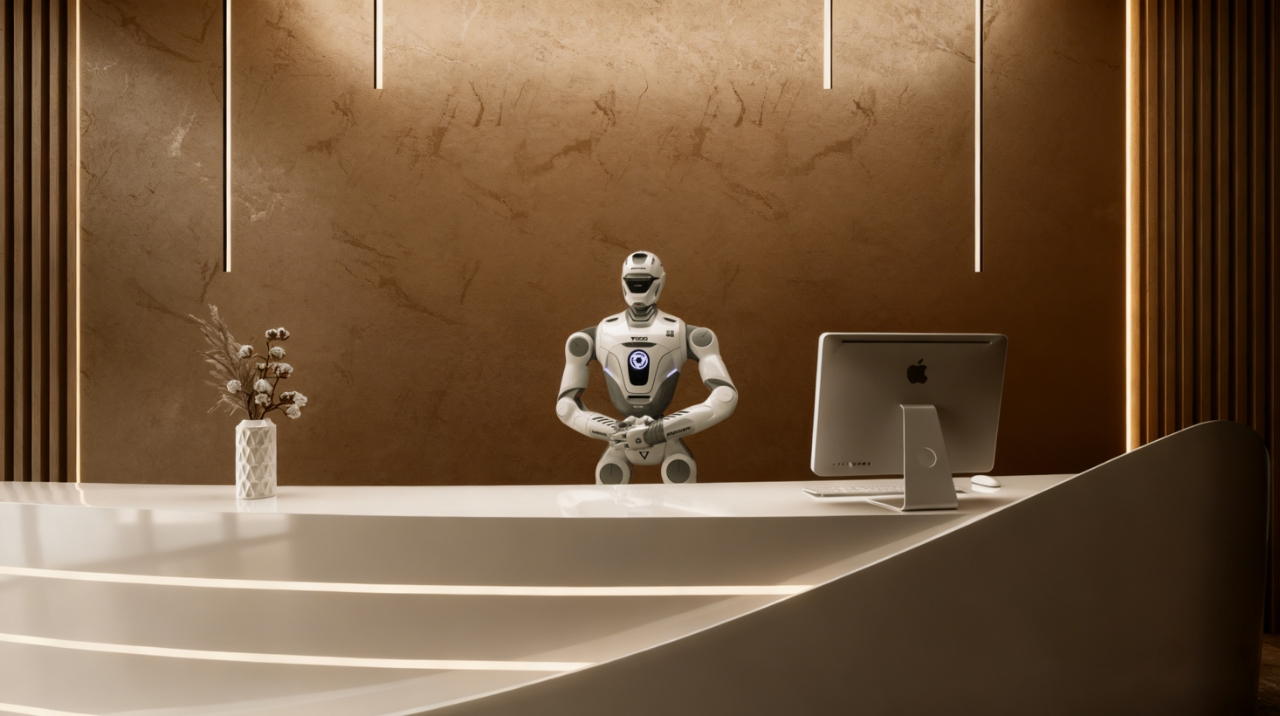

Hotel Services
Sales Associate

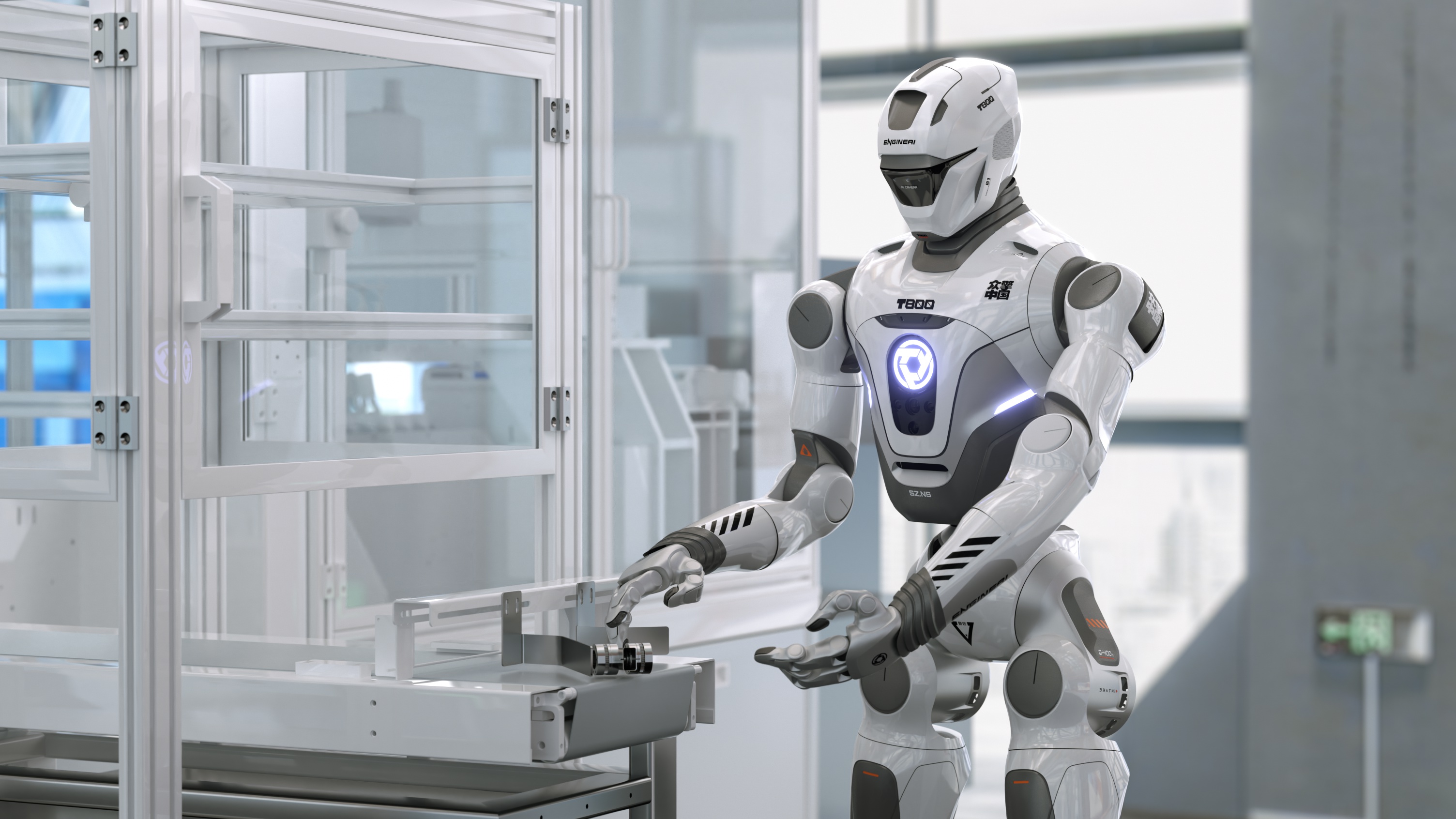

Human-Robot Collaboration
Now, We Pioneer a Shared Future.
Core Parameters
Features
-
size
Height
173 cm
Weight(with battery)
75 kg
Total DOF(excluding dexterous hands)
29
DOF per hand
7
Calf+Thigh Length
91 cm
Arm Length
60 cm
Neck DOF
2
DOF per leg
6
Waist DOF
1
DOF per arm
7
-
Motion Parameters
Joint Motion Space
Waist：Y-251°~71° Hip:R-118°~62°、P-190°~130°、Y-81°~206°
Knee：P-15°~135°,Foot:P-39°~39°、R-15°~15°, Head：P-30°~30°、 Y-70°~70°
Shoulder：P-170°~160° 、R-140°~22° 、Y-150°~150°,Elbow：P-131°~15°、 R-150°~150° Wrist：P:-25°~25°、R-35°~65°Fully Jointed Internal Cable Routing
Yes
Moving Speed
3 m/s
Perception Sensors
D415+D435i+AC1
Base Computing Power
intel N97
High-Performance Computing Module
AGX orin（64G）,275 TOPS
Secondary Development
Support
Intelligent Battery(Quick-Release)
Yes
Lightig Configuration
two headlights + two chest lights + knee lights
Handheld Remote Controller
Equip
-
Motor Model
Joint Encoder
Absolute Dual Encoder
Joint type
Planetary/Linear
Maximum Torque（Nm）
450 N·m
Rated Voltage（V）
72V
Charging Power
714 W
Battery Life
2-4 h
Charging Speed
2.5 h
Force Control Accuracy
5%
[1]The above parameters may vary depending on specific business scenarios, device postures, and other conditions. Please refer to the actual performance.
[2] For detailed functionalities, please refer to the SDK/API documentation.
[3] For more detailed warranty terms and conditions, please see the Product Warranty Manual.
[4] Due to the complex structure and extremely powerful actuators of the humanoid robot, users must maintain a safe distance and exercise extreme caution during operation.
[5]The product's exterior design may be subject to upgrades and adjustments. The final product shall prevail.
[6] Some of the example features on this page are still under development, testing, and refinement, and will be gradually released to users in the future.
[7] The humanoid robotics field is currently in a global early-stage exploration phase. Individual users are strongly advised to fully understand the current limitations of this technology before purchasing.
[8]This product is designated for civilian use. Any hazardous modifications or misuse of the robot is strictly prohibited.
[9] For more information regarding our product terms and policies, please visit the official ENGINEAI website and comply with all applicable local laws and regulations.
